Real-Time Local Monitoring

The PWAY DT243 features a local HDMI loop-out that lets you monitor the transmitted video directly from the transmitter side.
No more walking back and forth between rooms — see your live feed instantly.
It’s perfect for event venues, classrooms, control centers, and broadcasting setups where fast feedback matters.

High-Speed, Low-Latency HD Video Transmission

Powered by a 1 Gbps Ethernet connection, the DT243 delivers crystal-clear, low-latency HD video over long distances (up to 150 m / 492 ft).
Designed for continuous 24/7 operation, it ensures rock-solid performance for both home and commercial installations.

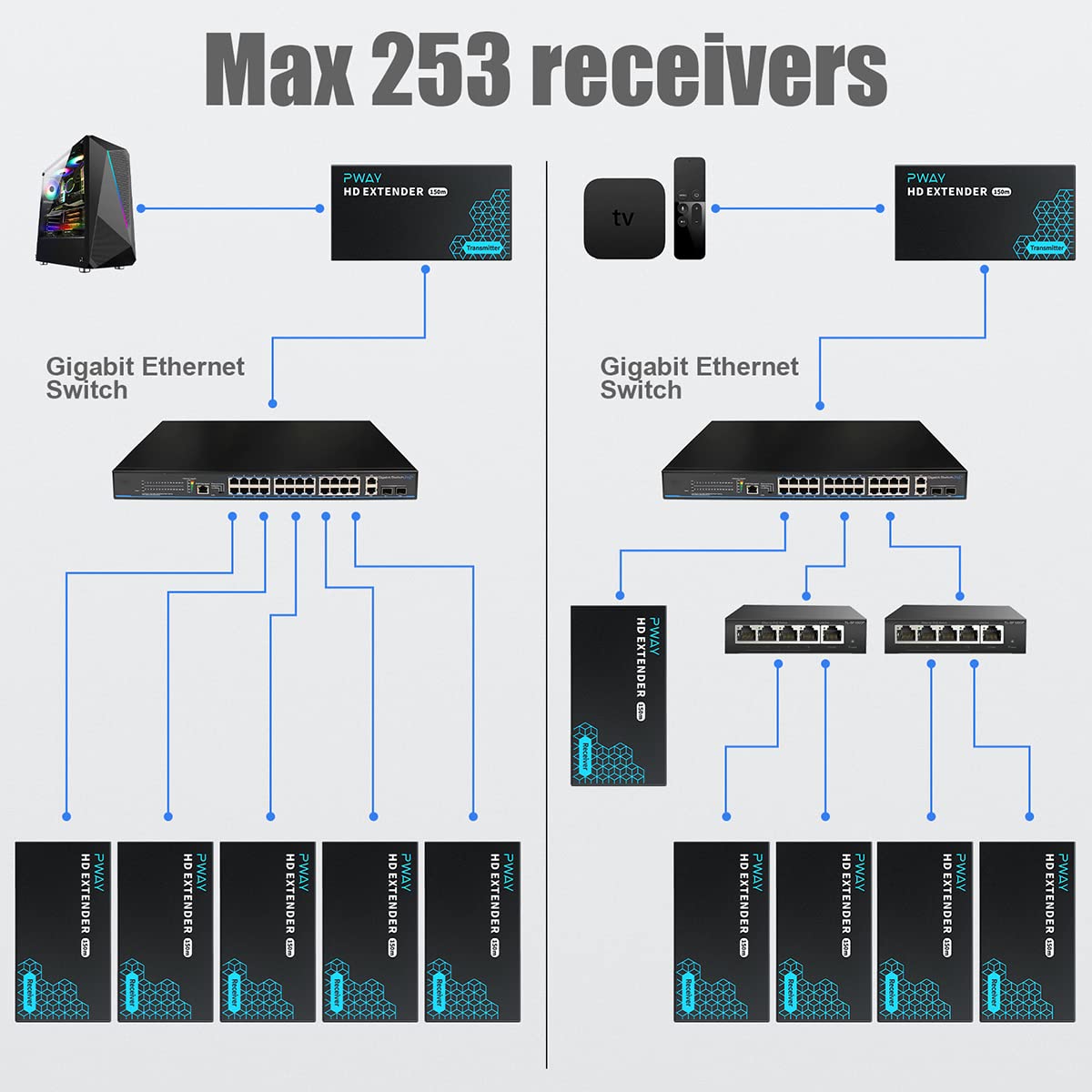

Scalable Network Distribution — Up to 253 Receivers

Easily expand your setup: each TX can broadcast to multiple RX units via a managed switch.
Supports up to 253 receivers per network — ideal for large venues or multi-display environments.
💡 For best stability, use a dedicated VLAN for your TX and RX devices instead of a home router.

Universal Device Compatibility

Fully compatible with computers, cameras, monitors, projectors, TV boxes, laptops, and more.
Whatever your setup, the DT243 seamlessly transmits your HD content with professional clarity.

⚡ Ideal Applications

• Event venues & large stages

• Retail & showroom displays

• Broadcast control centers

• Educational or corporate presentations

• Home entertainment systems


  Feature	Specification
  Transmission Bandwidth	1 Gbps
  Resolution Support	1080p @ 60Hz
  Maximum Distance	150 m / 492 ft (CAT6)
  HDMI Standard	HDMI 1.3 / HDCP 1.2
  Compression / Codec	H.264
  PoE Support	No (DC adapter included)
  Power Supply	DC 5–12V (adapter included)
  Average Bandwidth	600–800 Mbps (1080p)
  Peak Bandwidth	Up to 1 Gbps
  Setup	Plug & Play
  Deployment	Industrial / Event / High-performance
  Warranty	1 Year
